Home > Internal Driven Piezo Buzzer

  • HP4333AX Piezo Audio Indicator

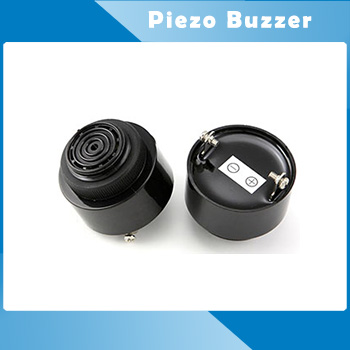

HP4333AX Piezo Audio Indicator

HP4333AX Piezo Audio Indicator

  • Product description: HP4333AX Piezo Audio Indicator Buzzer ,apply for industrial machine, supermarket door and alarm .The feature is small size, low power consumption, high sound pressure, waterproof . Usually the Rated
  • INQUIRY

HP4333AX   Piezo Audio Indicator Buzzer

Buzzer Datasheet:
Pin termina  Type
Internal Driven Piezo Buzzer (With oscillator circuit)
Dia 43x33mm  Worked with 12V DC .Output 2.9K Hz 95dB at 10cm

Type

UNIT

HP4333AX

HP4333BX

*Min. Sound Output at10cm

dB

95

95

Rated Voltage

VDC

12

12

Operating Voltage

VDC

6~28

6~28

Resonant Frequency

Hz

2900±500

2900±500

*Max. Current Consumption

mA

20

20

Tone Nature


Continuous

Fast Pulse

Operating Temperature

°C

-20～+70

Storage Temperature

°C

-30～+80

Weight

g

35

Value applying at rated voltage

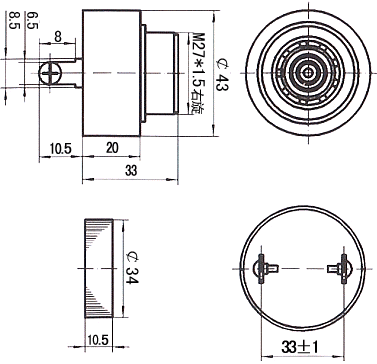

DIMENSIONS     Unit:mm     Tolerance:±0.5
